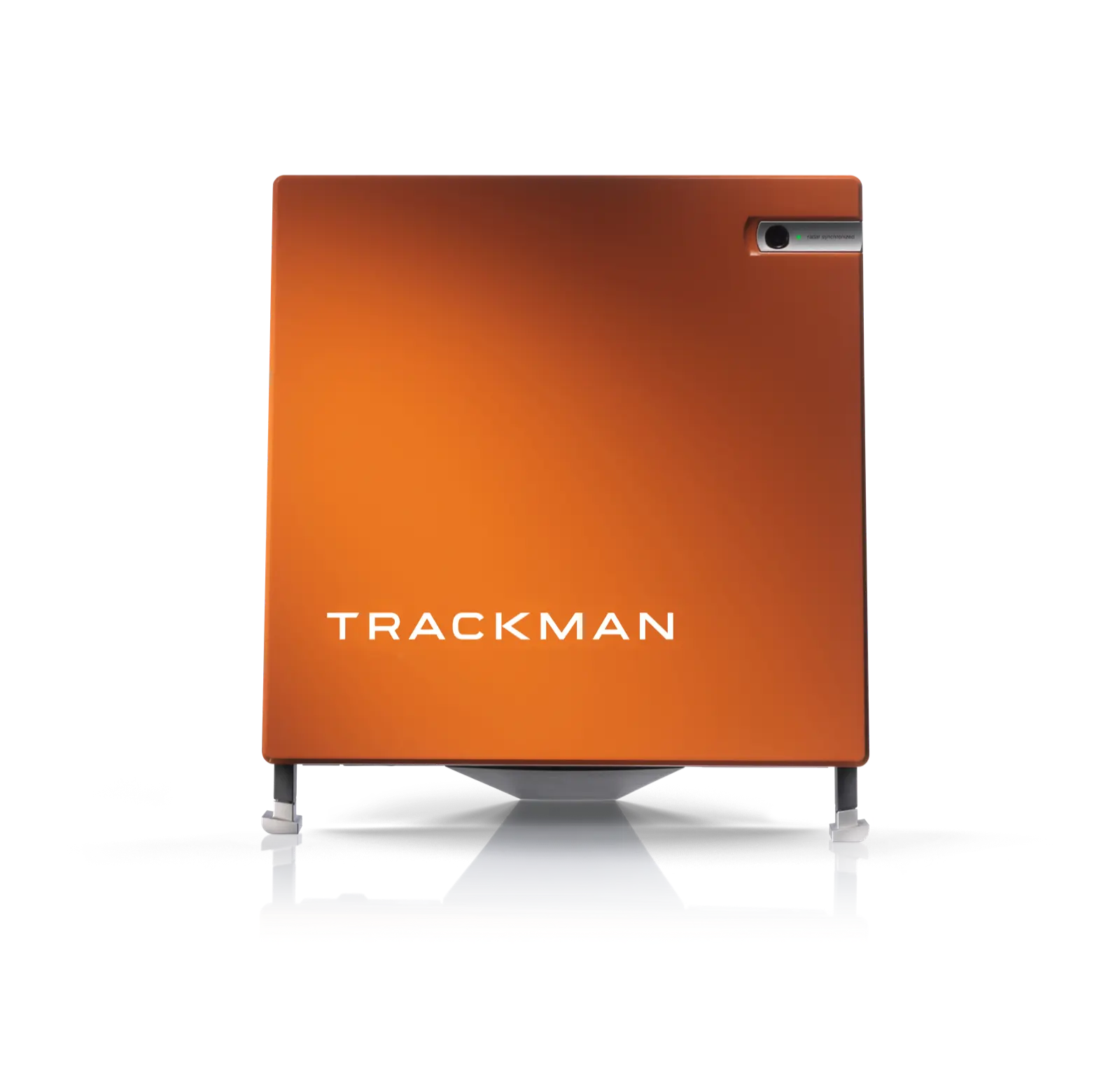

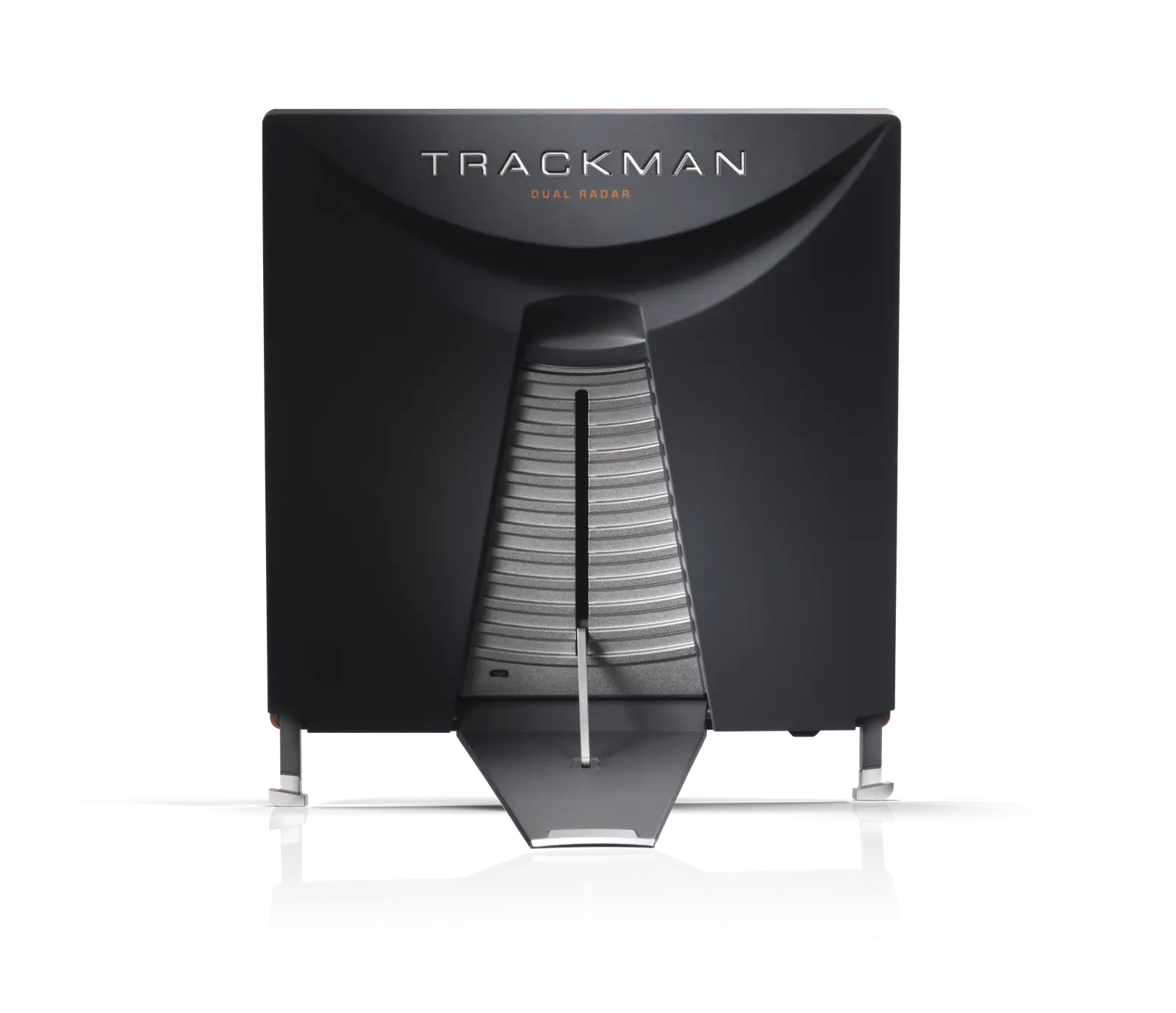

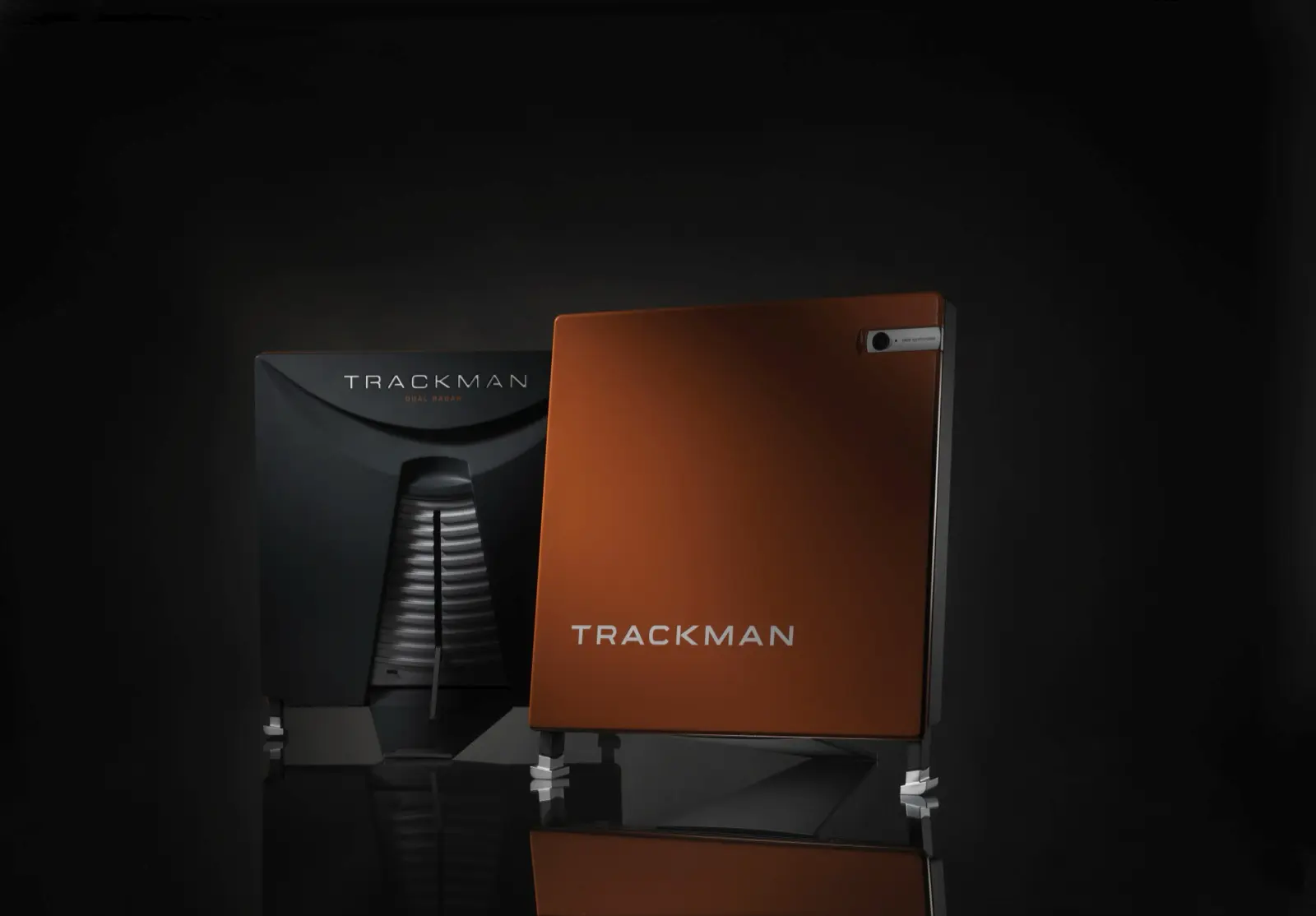

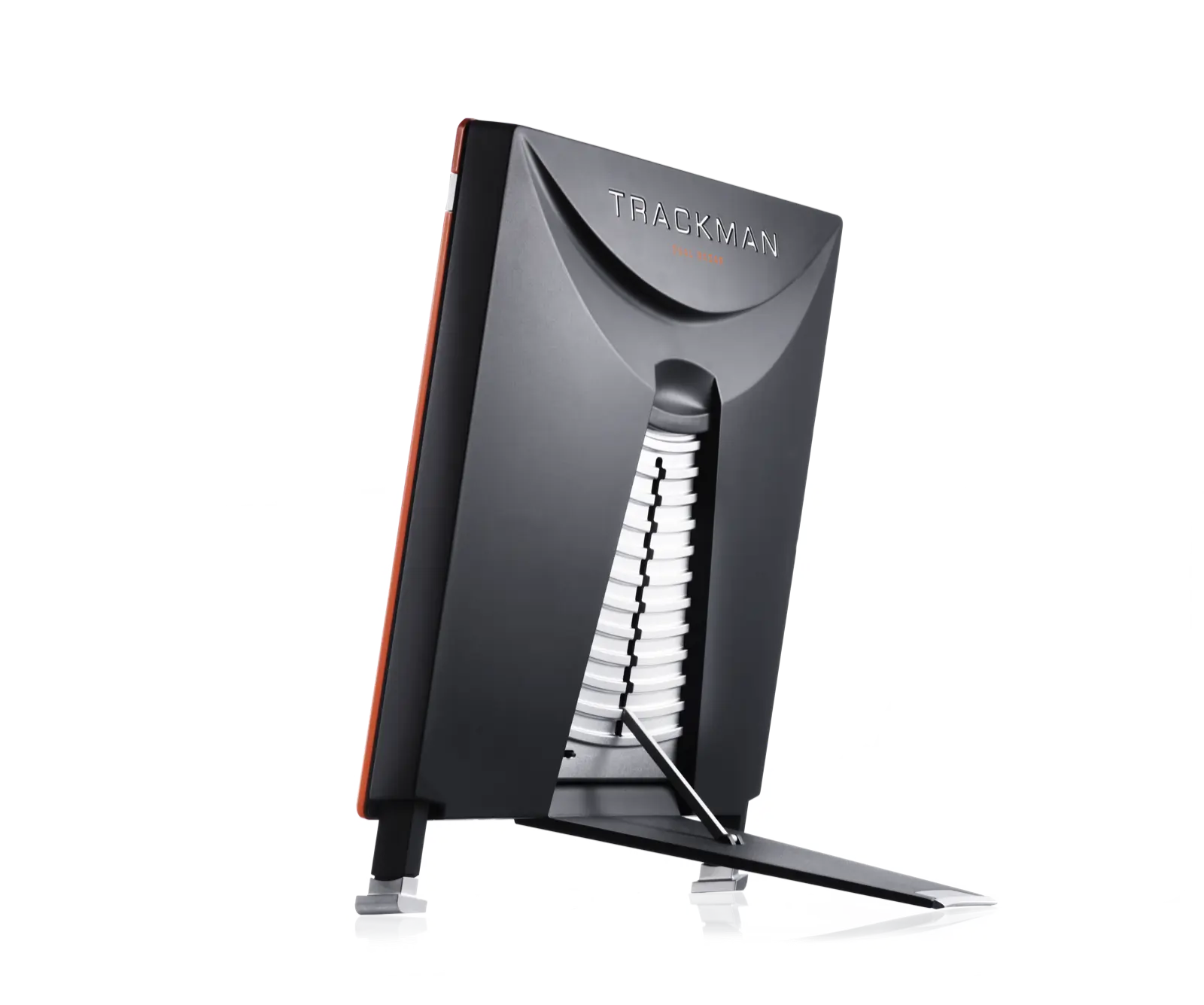

Trackman 4

Trackman 4 is the launch monitor most tour professionals, coaches and club fitters use. It sits on the ground behind the ball and runs two radar systems at once: a short-range, high-resolution radar for the club and impact, and a long-range radar that follows the ball for its entire flight. It works indoors and outdoors, in any light.

What sets it apart

• Dual radar: one radar tracks the club through impact while the other tracks the ball from launch to landing.
• More than 40 data parameters: 17 club and 13 ball measurements, plus 25 for putting.
• Impact location: Optically Enhanced Radar Tracking shows where on the face you struck the ball.
• Built-in camera: records video of each swing, with target alignment and automatic levelling.
• Portable: 6.6 lb, with a battery good for four hours or more and built-in Wi-Fi.

What it measures

• Club: club speed, attack angle, club path, face angle, face to path, dynamic loft, spin loft, swing plane, swing direction, low point, dynamic lie, impact height and impact offset, among others.
• Ball: ball speed, smash factor, launch angle, launch direction, spin rate, spin axis, height, curve, landing angle, carry, side, total and side total.

Using it indoors

• As a radar unit, Trackman 4 sits behind the golfer, so it needs more room depth than an overhead or camera-based launch monitor.
• Trackman specifies at least 16 ft from the unit to the screen or net, and recommends a room 18 ft deep or more, 15 ft wide, with a 10 ft ceiling.
• Short on depth? An overhead unit such as the Trackman iO is the better fit. Ask us if you are not sure.

Software

Runs Trackman Performance Studio and Trackman Virtual Golf on a Windows PC, plus the Trackman Golf app on a phone or tablet.

Subscription and maintenance

• Software subscription: about $1,300 per year. Required to use Trackman Performance Studio and Virtual Golf; the first year is included with a new unit.
• Hardware maintenance plan (optional): about $1,300 per year after the first year. Covers repairs with priority service, a loaner unit while yours is being repaired, and shipping. Without it, out-of-warranty repairs are charged per job.

Trackman bills subscriptions, maintenance plans and upgrades in US dollars. The Canadian figures here are approximate conversions at the time of writing; the amount charged at renewal follows the exchange rate on that day.

Ordering

Your order is placed directly with Trackman and shipped to you from Trackman in Canada. We can also put you in touch with a Trackman contact to help with setup and software questions.

Unit prices are in Canadian dollars. Subscriptions, maintenance plans and upgrades are billed by Trackman in US dollars, so the Canadian amounts shown are approximate and follow the exchange rate at the time of renewal.
